ZOHD Talong GT Rebel

HAKRC AIO F722 FC + 40A 2-6S BLHeli_S ESC for Cineon C35

  • Shipping Weight: 0.1kg
  • 0 Units in Stock
  • Manufactured by: Axisflying

Login to see Price

Login here

To be notified when this product is back in stock please click here. (Requires account)

About this product

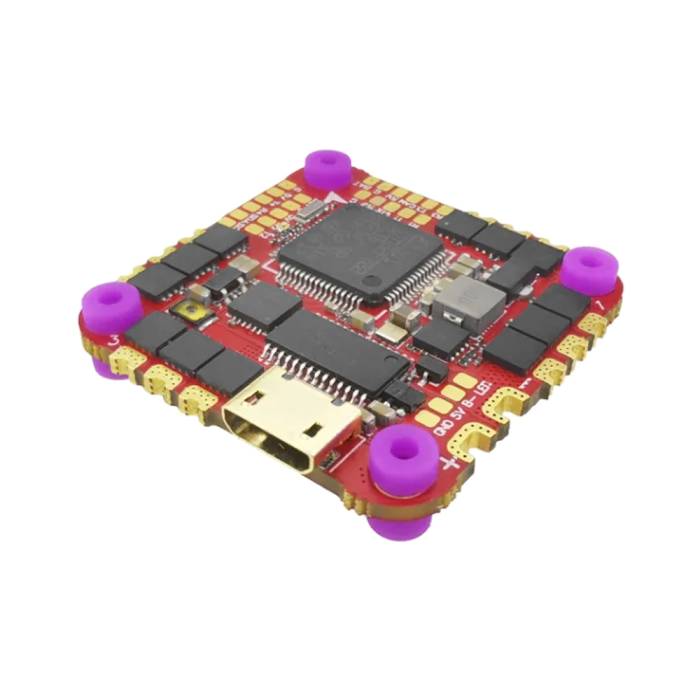

This HAKRC AIO Board features a brushless F722 flgiht controller and a 40A 2-6S BLHeli_S ESC. This version carries an external USB. This is an ultra-light 7g brushless AIO flight controller!! This FC has a strong performance and can handle 40A continuous current and up to 6S.

VIDEO: HAKRC F722 AIO Whoop Flight Controller


  • PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation
  • MOS adopts imported 40V high current resistance MOS, long life and strong load capacity
  • High-quality Japanese Murata capacitors with strong filtering performance
  • Industrial grade LDO for high temperature resistance.


  • Mounting Pattern: 25.5mm-26.5mm
  • Packing size: 63x32mm
  • Product Net weight: 7g
  • Package Weight: 25g
  • Size: 32x32mm


  • LED: Support WS2812 and other programmable
  • Flight control firmware version: HAKRC F722D
  • Receiver: CRSF / Frsky/ Futaba/ Flysky/
  • TBS Crossfire/ DSMX: DSM2 receiver
  • Sensor: Built-in current sensor
  • CPU: STM32F722RET6
  • Barometer: integrated
  • IMU: MPU6000
  • OSD: AT7456E
  • BEC: 5V/3A
  • Uart: 5


  • Protocol support: PWM, Oneshot125, Oneshot42,
  • Multishot, Dshot150, Dshot300, Dshot600
  • Firmware version: BLHELI _S (G- H-30)
  • Firmware support: BLHELI_ S
  • Current meter proportional value: 450
  • Input voltage: 2S-6S Lipo
  • Continuous current: 40A
  • Peak current: 50A


  • 1x HAKRC AIO Board - Brushless F722 FC + 40A 2-6S BLHeli_S ESC
  • 1x 180mm External Type-C USB Board
  • 1x SH1.0/7P Single-Head Cable
  • 4x Shock-Absorbing Ball
  • 1x 270uf/35V Capacitor
  • 1x XT30 Power Cord
