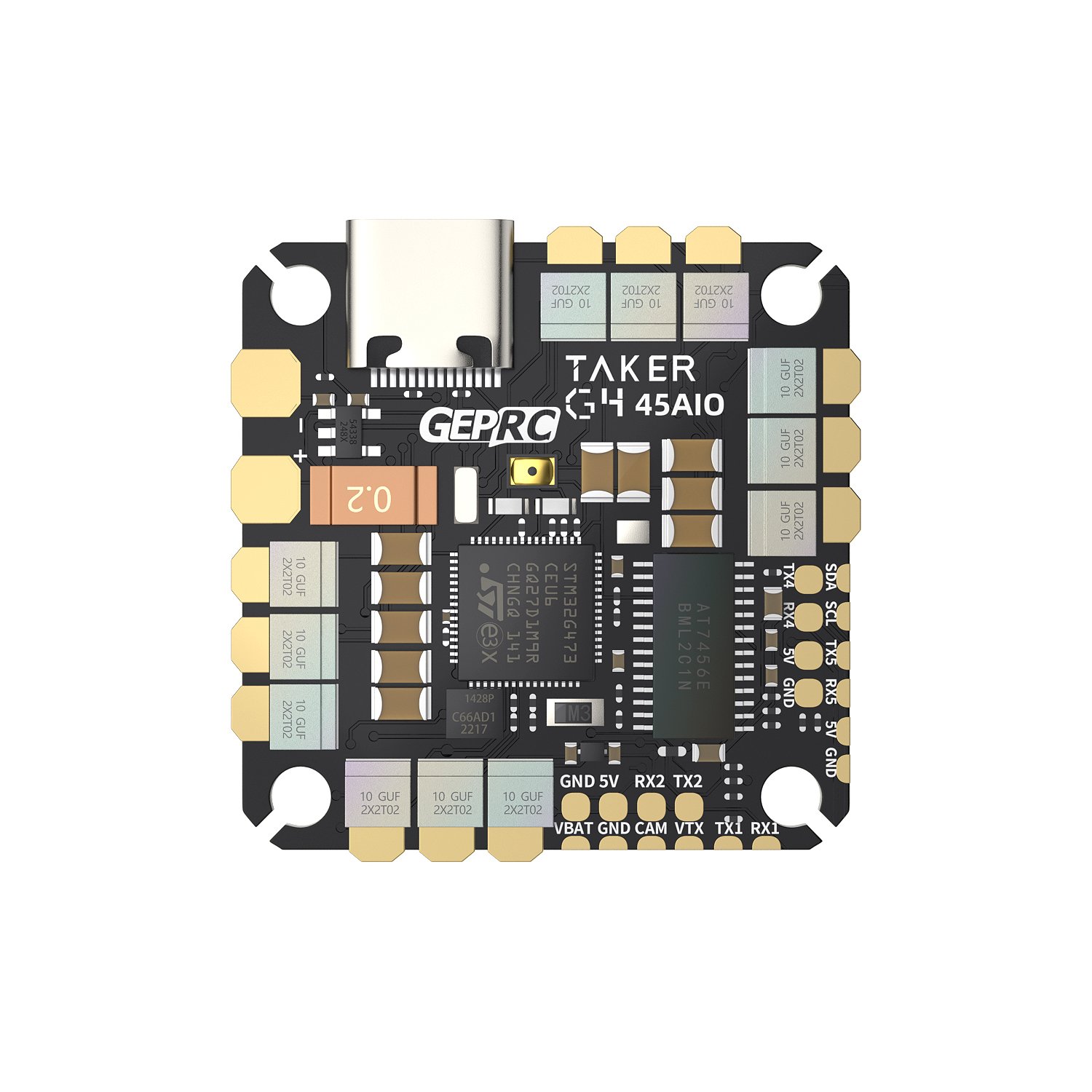

GEPRC GEP-TAKER G4 45A AIO

  • Model: GP106347
  • Shipping Weight: 0.15kg
  • 2 Units in Stock
  • Manufactured by: GEPRC

Login to see Price

Summary

TAKER G4 45A AIO is a new AIO flight control developed by the GEPRC team. The FC adopts the G473 main control to achieve better computing power.
With its powerful overcurrent capability, the selectivity of the electrical setup is diversified. The whole board is covered with nano waterproof coating, which gives AIO the appearance of an aura glow and also makes the AIO waterproof. Adopts QF32MT chip, the integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.
We believe that TAKER G4 45A AIO can bring you boundless joy.

Feature

  1. Weighs only 9 grams.
  2. The G473 control possesses 170MHZ operating frequency and outsatnding computing capability.
  3. The optimized Type-c USB has better versatility.
  4. The whole board is covered with nano waterproort coating.
  5. The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.

Specifications

  • Model Name?TAKER G4 45A AIO
  • MCU?STM32G473CEU6
  • IMU?ICM 42688-P
  • Firmware target?TAKERG4AIO
  • OSD?Betaflight OSD w/ AT7456Ev
  • Uart?R1 T1 / R2 T2 / R4 T4 / R5 T5
  • Buzzer?YES
  • LED ?YES
  • USB ?Type-c USB
  • BEC output?5V 3A
  • ESC MCU?QF32MT
  • Continuous Current?45A
  • Burst Current?50A(5?)
  • lnput Voltage?2~6S (LIPO Battery)
  • Supports?Dshot600,Oneshot,Multishot
  • Current meter?YES
  • target?F4A AIO
  • Size?33.8mm * 34.1mm Board
  • Install hole?25.5 mm * 25.5mm
  • Weight?9g

Includes

1 x GEP-TAKER G4 45A AIO

1 x Cable Set
