1.2G 1.2GHz 1W 1000mW VTX Video Transmitter Module

1.2G 1W VTX:

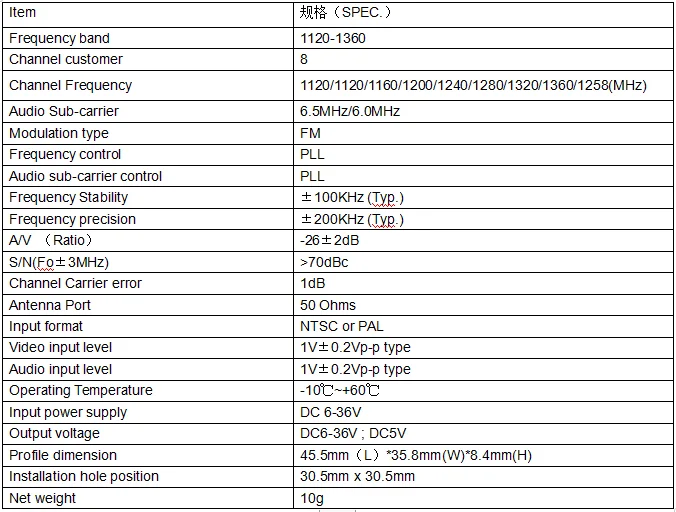

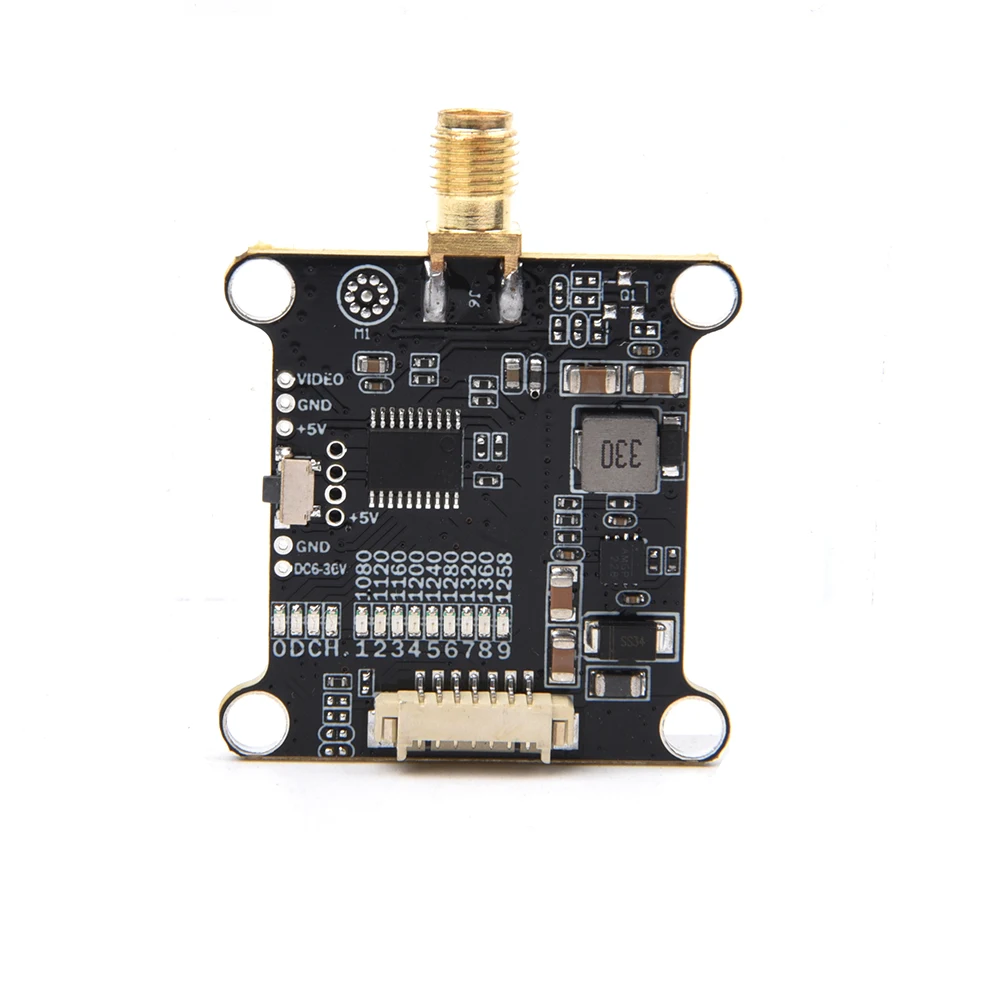

I. Button control and LED light:

1. 4 green lights represent frequency:0.1mW(0)/25mW(D)/200mW(C)/1000mW(H),  Boot default is 0.1mW. Long press of the button could switch into next frequency. Cycle the operation,every long press means the frequency switch and the light on.
Note:the frequency needs to be adjusted every time the power cut off
2. 8red lights represent band,short press could switch into nextband, this operation can be cycled. Every short press means the band switch and the light on.
Note:the operation has the setting memory, the system could save the current band when the power cut off

II. Interface definition:

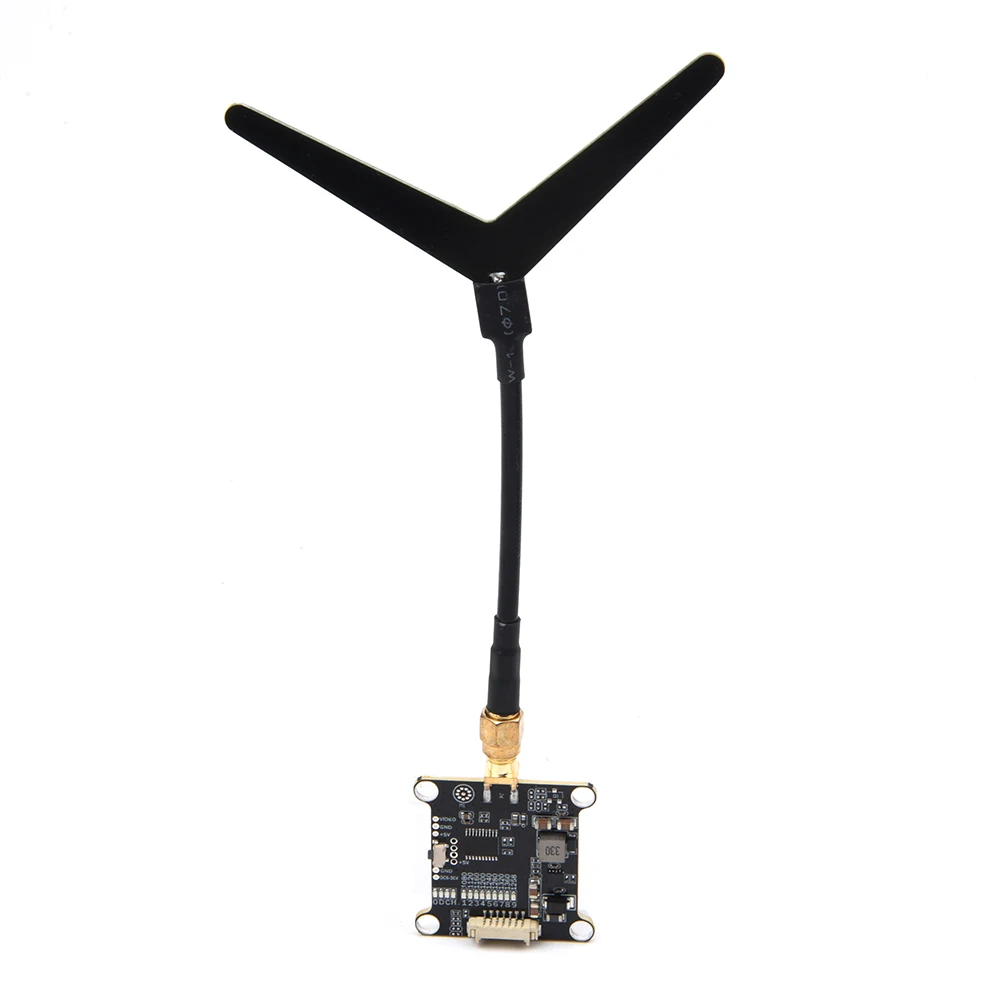

1. The antenna type is SMA: The antenna head is "external thread + hole", and the antenna rod is "internal thread + needle". It is equipped with a 1.2G special customized "Y" antenna

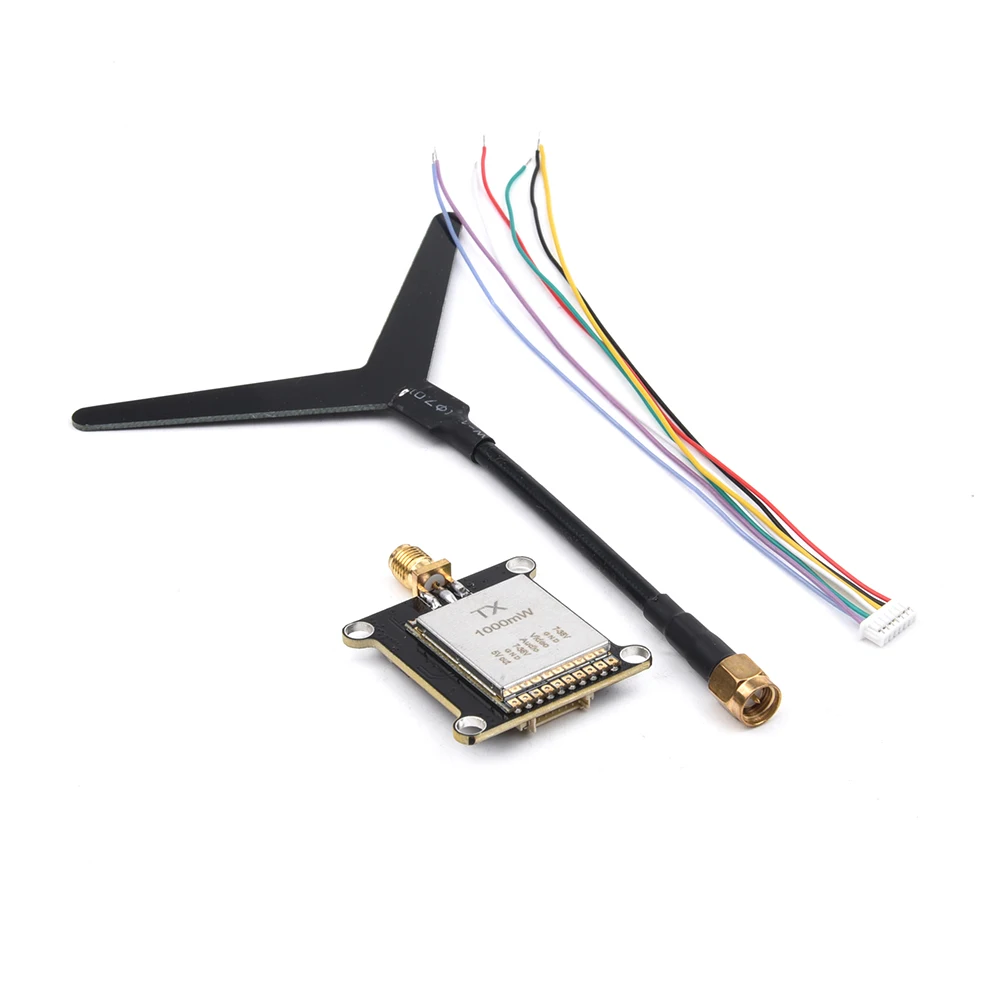

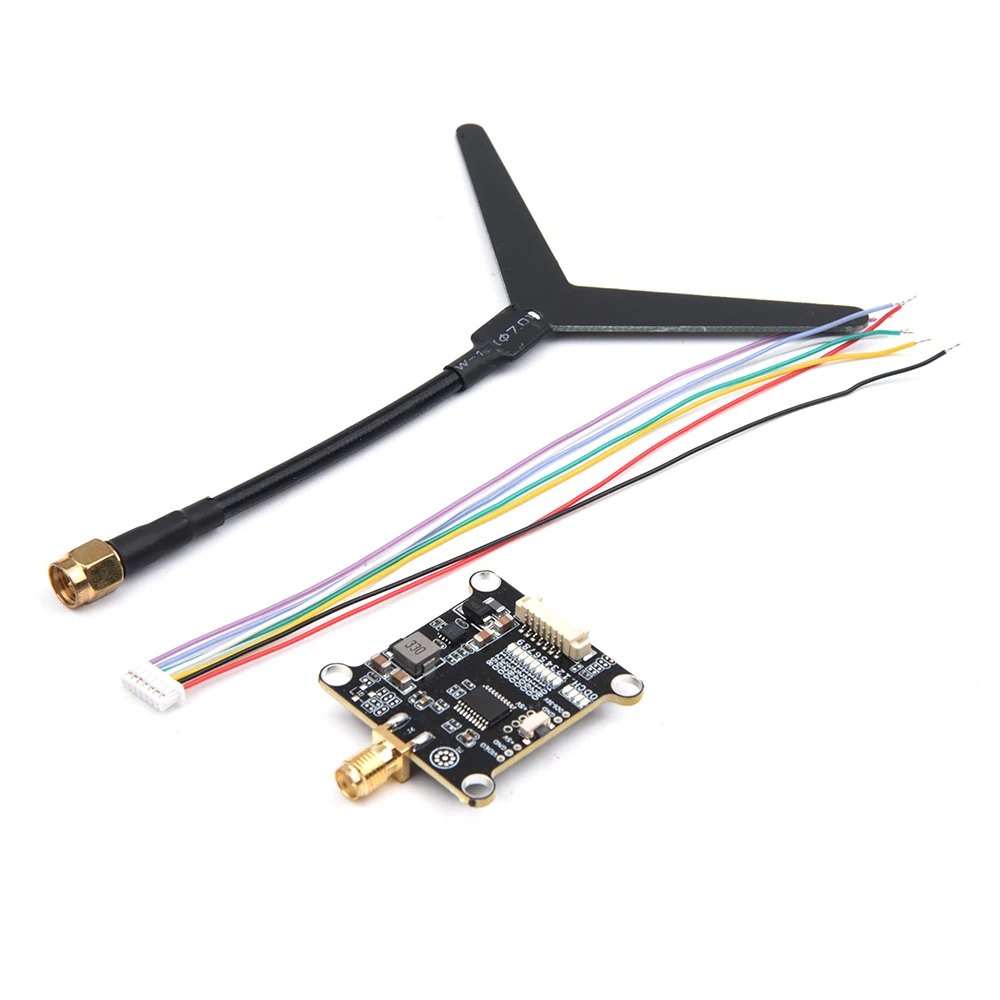

2.7P1.25 interface arrays:1.power input DC 6-36V;2.input ground;3.video input;4. 6.5M audio input ;5.DC output 6-36V; 6.DC output ground;7.DC output 5V.
