Feature
- Five levels of adjustable power, up to 2500 mW, suitable for long-distance flights
- Selected high-strength CNC aluminum alloy shell, auxiliary heat dissipation
- The built-in micro-turbo fan actively dissipates heat
- Wide voltage input, supports 7V-36V voltage input.
- One function button, three indicator lights, easy to operate.

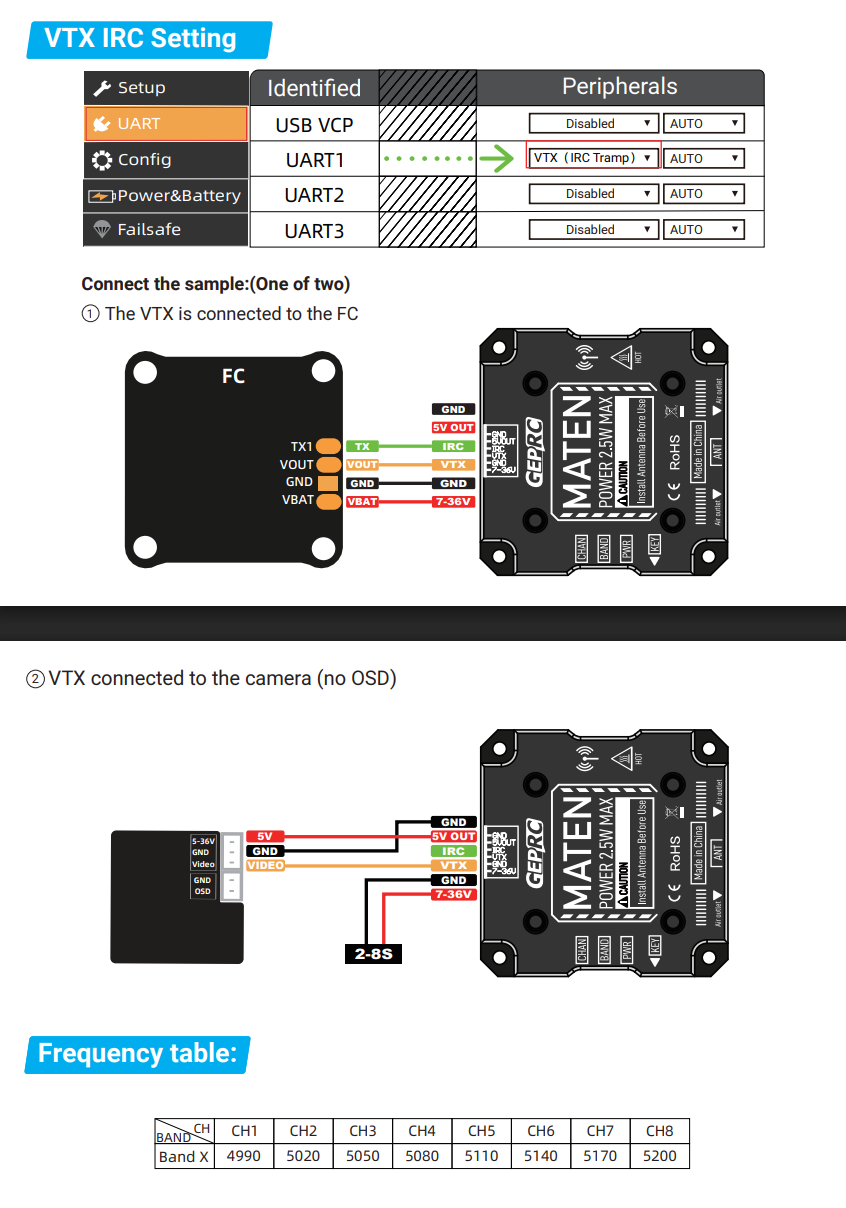

- VTX control protocol is IRC Tramp, supports OSD settings.
- Temperature control protection function that can prevent high temperature burning
- Built-in VTX microphone, real-time transmission of drone sounds.
- supports 8 transmission channels
- Support 20x20mm (M2) and 30.5x30.5mm (M2) mounting hole location
Technical characteristics
- Model: GEPRC MATEN 4.9G 2.5W VTX PRO
- Size: 36.3×36.3×15.1 mm
- Mounting hole: 20x20 mm (M2), 30.5 × 30.5 mm (M2)
- Output power: 25mW/200mW/600mW/1600mW/2500mW/pit mode
- Frequency: 4990-5200 MHz
- Channel: 8CH
- Input voltage: DC7-36V (2-8S battery)
- Output Voltage: 5V @ 600mA
- Protocol: IRC Tramp
- Antenna interface: MMCX
- Cable interface: SH1.0 6pin
- Video format: PAL/NTSC
- Microphone: built-in microphone
- Weight: 20 g
Manual:
Download here
Betaflight frequency table (copy and paste to CLI):
# MATEN 4.9G 2.5W VTX PRO
vtxtable bands 1
vtxtable channels 8
vtxtable band 1 X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 2500
vtxtable powerlabels 25 200 600 1W6 2W5
save
