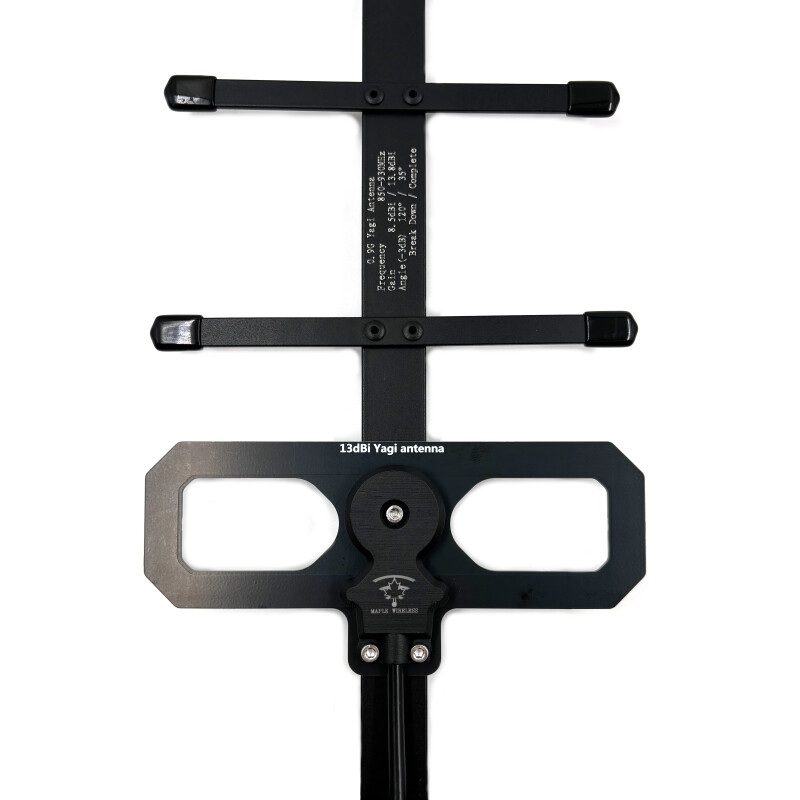

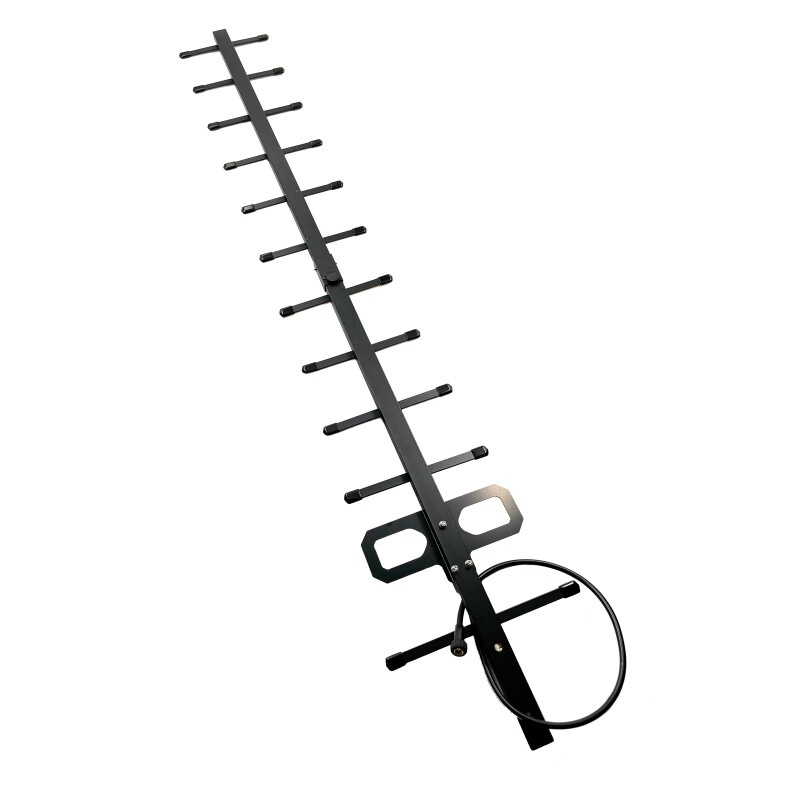

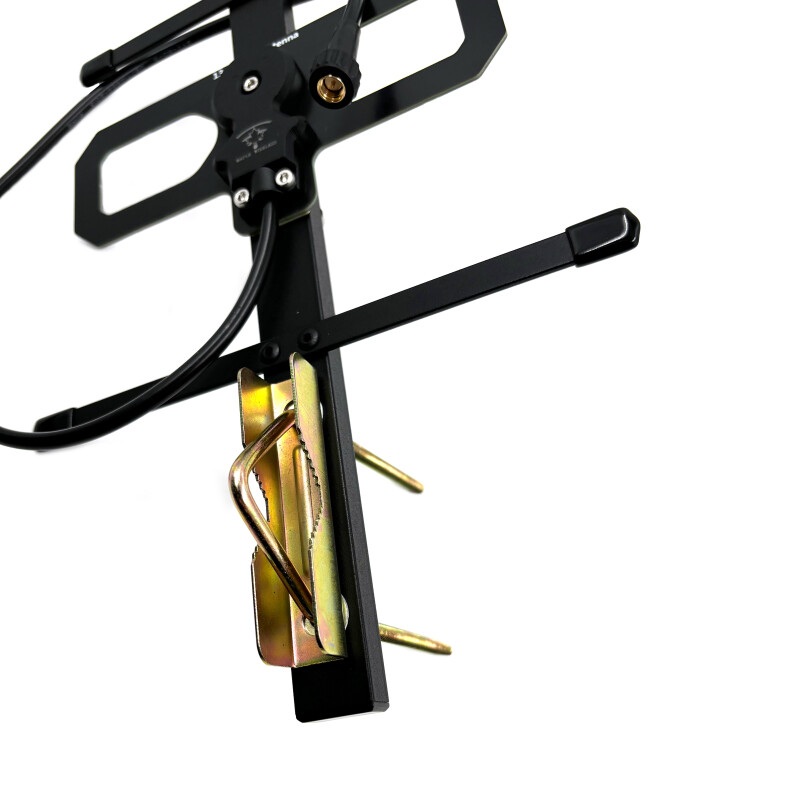

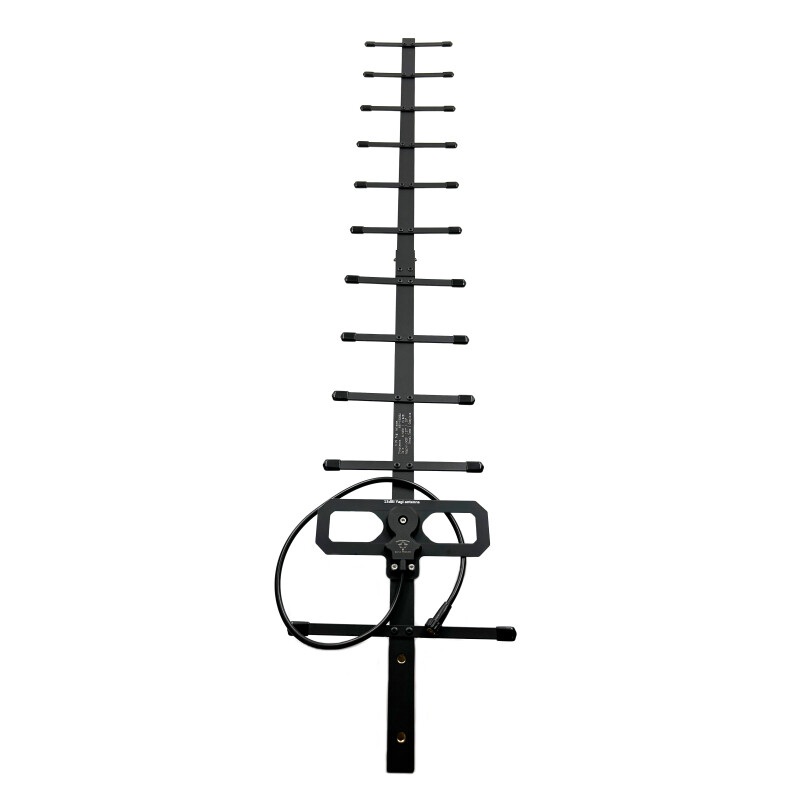

Maple Wireless 0.9Ghz 14dBi Yagi antenna (Silver color) SMA

Description

The Yagi Maple Wireless 0.9Ghz 14dBi antenna operates in the frequency range of 850~930MHz, providing a reliable and stable signal. The 14dBi gain improves data transmission efficiency while minimizing losses. A narrow 35° half-power beam ensures precise signal directionality in both planes, reducing interference. The F/B ratio of 15dB helps to effectively suppress unwanted signals from the rear. Yagi supports a maximum power of up to 10W, making it versatile for a variety of applications. The antenna is made of two parts, which makes it convenient for transportation and easy to install.

Features.

• Supports operation in the frequency range from 850 to 930 MHz
• Provides 14dBi signal gain
• Has a half-power beam of 35° in the horizontal and vertical planes
• Supports power up to 10W
• Equipped with lightning protection, has direct grounding

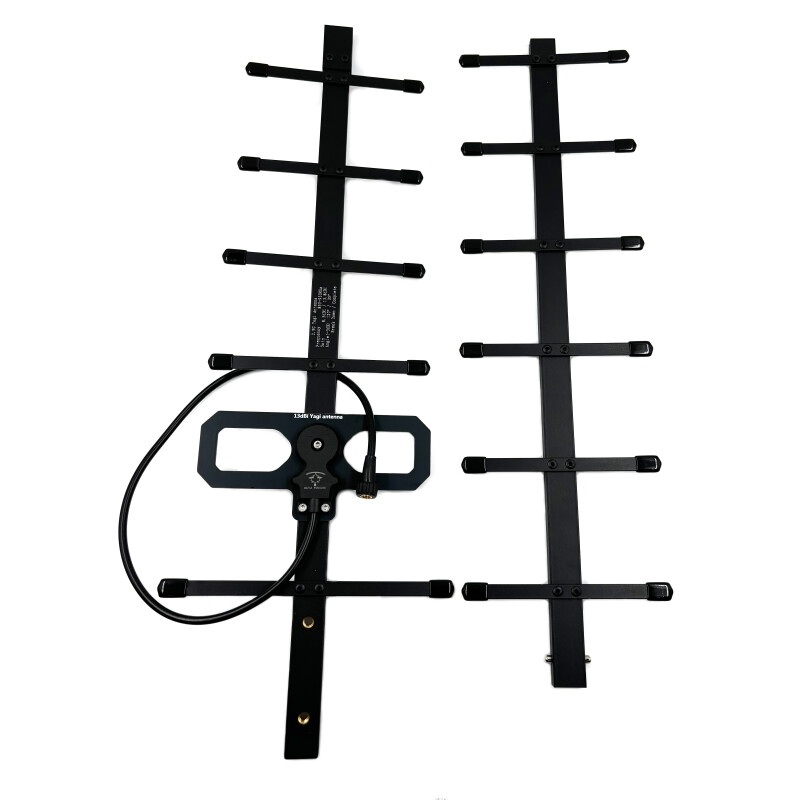

• Consists of 2 parts for easy transportation

Specifications

• Frequency range: 850~930MHz
• Input impedance: 50?
• VSWR: <1.5
• Gain: 14dBi

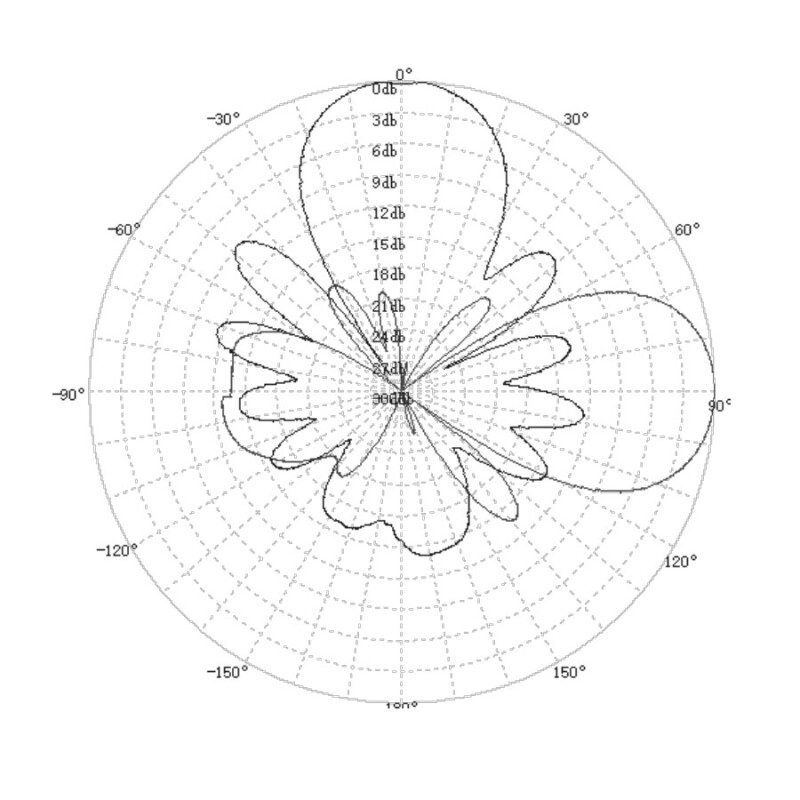

• Half power beam: 35°H-plane 35°E-plane
• F/B ratio: ?15dB
• Maximum power output: 10W
• Polarization: vertical
• Connector: SMA
• Lightning protection: direct grounding
• Ambient temperature: -40~+60°C
• Antenna size: 980*190*30mm
• Weight: 285g

Package contents.

• 1 x Yagi Maple Wireless 0.9Ghz 14dBi antenna

Photos
