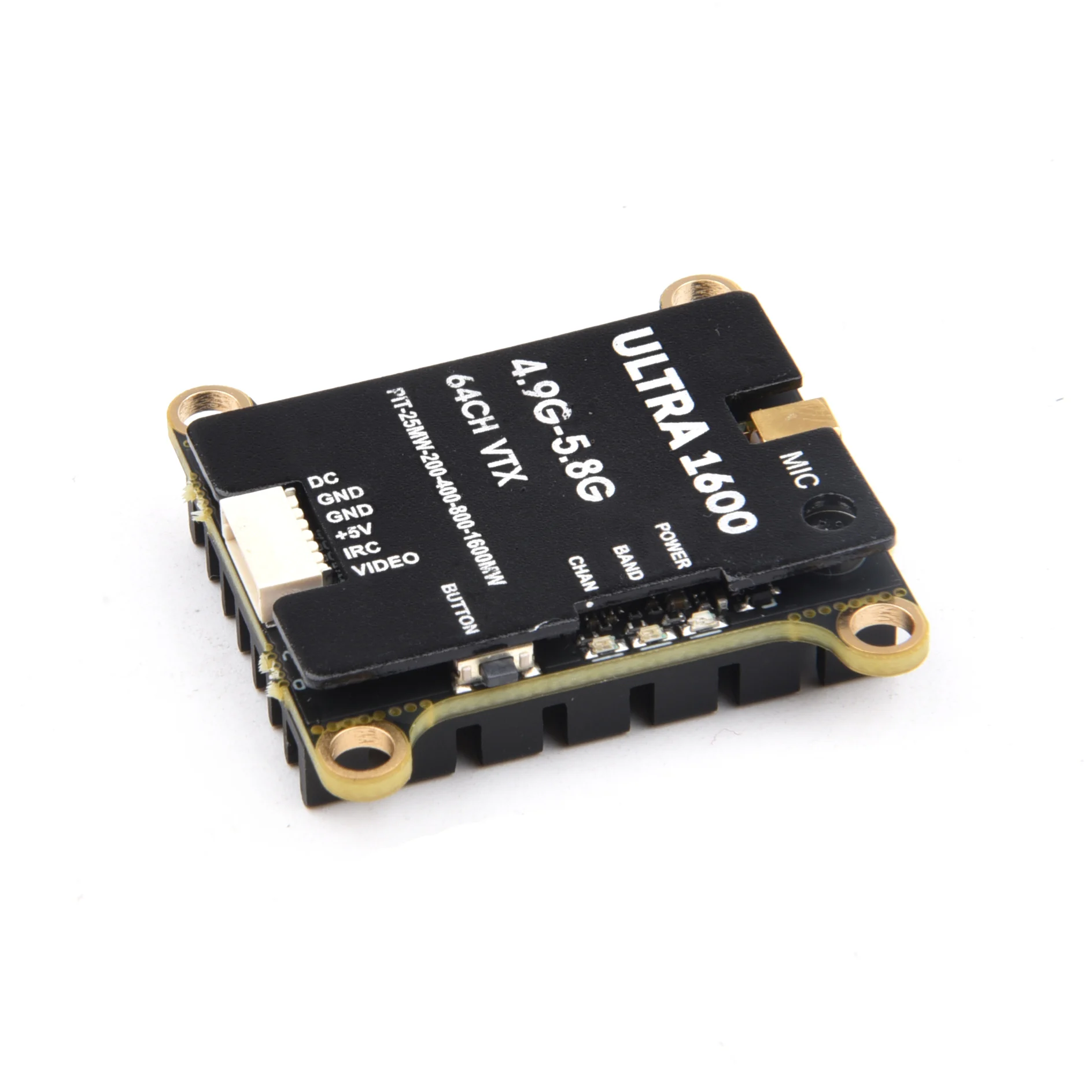

Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75?
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/200mW/400mW/800mW/1600mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 1.6W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/200mW/400mW/800mW/1600mW/Pit mode .
3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.

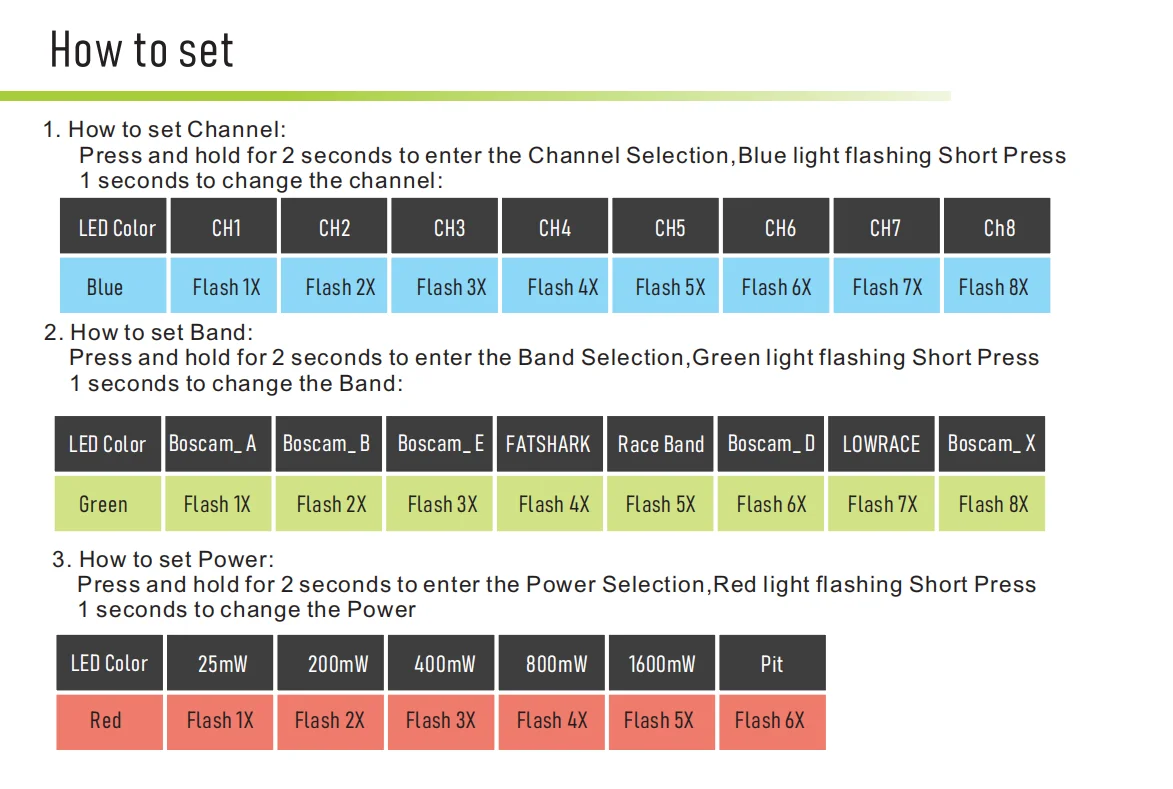

9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
Support IRC Tramp Protocol

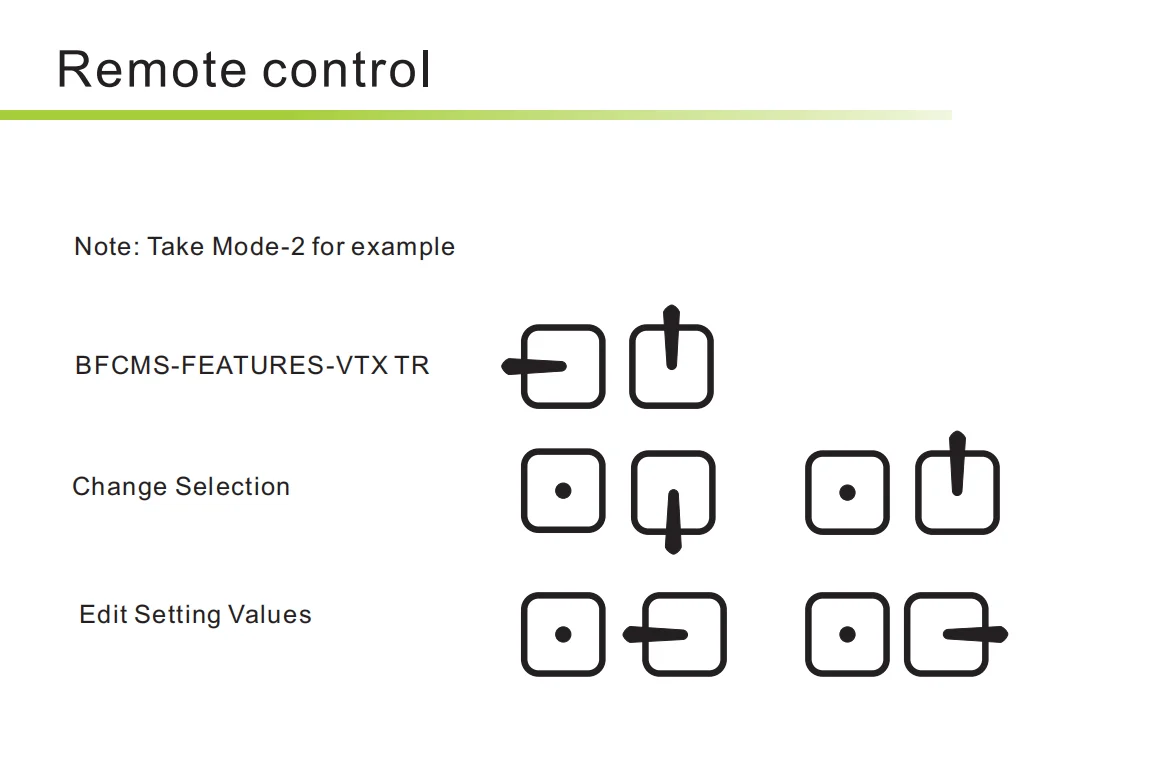

Ultra1600 VTX supports the IRC TRAMP protocol and the modification of
video transmission parameters through the remote control, including
frequency, working power and so on.
NOTE: For BetaFlight flight controller firmware above BetaFlight 4.1.0,you need
upload a VTX Table to the flight controller before using the remote control to
modify the video transmitter parameters normally.
ULTRA1600_VTX_16W.json
For the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control"
Model: Ultra2500 2.5W VTX
Model: Ultra2500 VTX 4.9G-5.8G 2.5W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75?
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 2.5W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/400mW/800mW/1500mW/2500mW/Pit mode .
3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
Support IRC Tramp Protocol
Ultra2500 VTX supports the IRC TRAMP protocol and the modification of
video transmission parameters through the remote control, including
frequency, working power and so on.
NOTE: For BetaFlight flight controller firmware above BetaFlight 4.1.0,you need
upload a VTX Table to the flight controller before using the remote control to
modify the video transmitter parameters normally.
ULTRA2500_VTX_25W.json
For the use of the video transmitter table, please refer to this article
“How to Setup Betaflight VTX Table – SmartAudio Tramp VTX Control"
NOTE:
Please pay attention to the choice of antenna for 4.9G or 5.8G.
For example, if you use 4.9G band, you have to use 4.9G antenna, if use 5.8G band, you have to use 5.8G antenna.
1 x Ultra1600 VTX 1.6W or Ultra2500 2.5W VTX ( send it as your choice)
1 x MMCX connector to SMA connector
1 x GH 1.25-6P connector cables 150mm
