Description
5KG Torque Metal Gear Micro Mini Digital Servo for Aircraft FPV Delivery Drones 450 Helicopter Fix-wing RC Auto Robot Arm
- The model remote is about 60 degrees.
- Pulse width 1000-2000us controllable 90°
- The controllable angle is 120 degrees, it is normal shipment, and is often used in: model cars, airplanes, and ships. 900-2100us
- Controllable angle 180 degrees, suitable for: robot joints, industrial development, 500-2500us
- Controllable angle 270 degrees, suitable for: robot joints, industrial development, 500-2500us
- Controllable angle 350 degrees, using magnetic sensing potentiometer, suitable for: robot joints, heads, industrial development, 500-2500us
- 360-degree continuous rotation cannot be controlled, commonly used in: twisted wire, industrial development, 500-2500us
- Among them, 1400-1600us is in the stopped state, the more you go to 500 or 2500us, the greater the speed and torque (the faster).
- Plastic shell, metal gear, coreless motor.
- Can be used for: introduction to helicopters, small fixed wing, robot development, vehicles, etc.
- 1000us-2000 corresponds to an angle of 90 degrees, the default signal range is 500-2500us-corresponding to 180 degrees

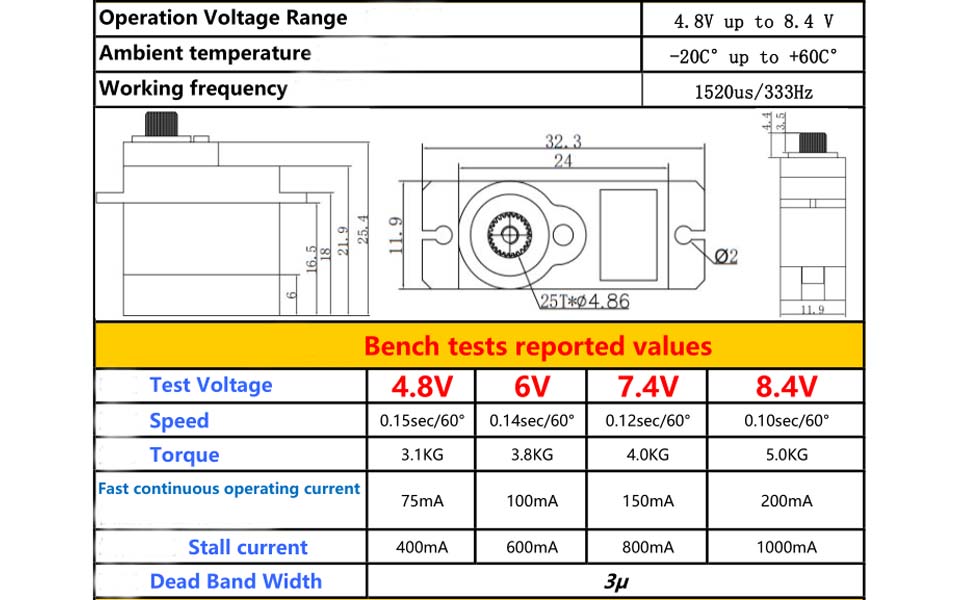

- 3.5kg.cm/0.14sec/60°@6.0V
- 4kg.cm/0.12sec/60°@7.4V
- 5kg.cm/0.1sec/60°@8.4V
- Size: 11.9×32.3×25.4mm
