Mark4 V2 10inch 427mm 3K Full Carbon Fiber TrueX

The Mark4 10 inch frame is a frame designed to manage heavy-loads flights. It can carries a maximum payload of 3kg when applied with a 3214 or 3115 900KV motor. The light-design structure enables immediate response even when flying with extra weight.

The FC fixing hole size is 20*20mm & 30.5×30.5mm(M3), Camera lens fixing hole size is 19x19mm(M2), Motor fixing hole size is 19x19mm(M3). Reserved enough space for VTX installation at the end of the frame, and the extended dimension frame can mount up to LiPo 6S 8000mah battery.

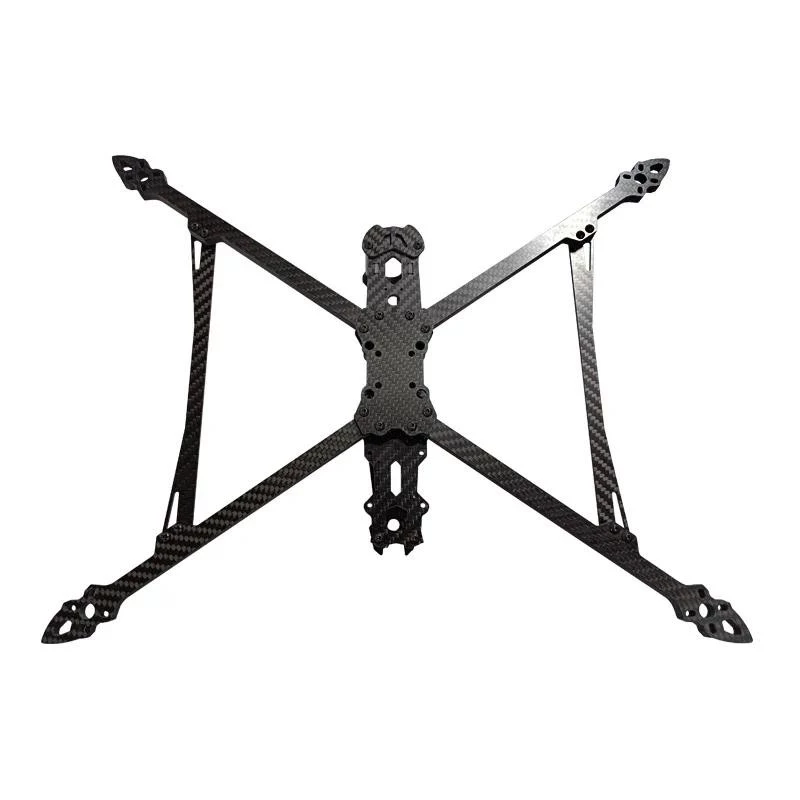

Mark4 V2 10Inch 427mm Carbon Fiber Frame

Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connecting plate: 2.3mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm

Please note that there may be manual errors in the measurement, and the data may not be completely accurate

Recommended parts(not included)
FC+ESC: F722 60 - 80A stack
RX: TBS Crossfire or ELRS915mhz receiver
Motors: 3115 900kv motor
Propellers: 1050 props
FPV Camera: Caddx Ant, Etc.

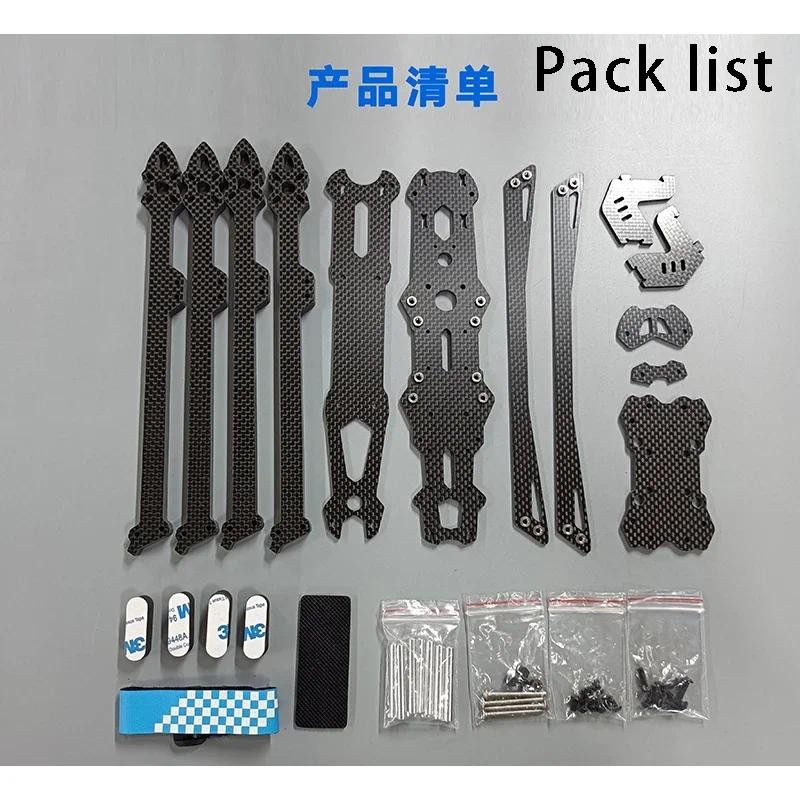

Packing List:
1set Mark4 V2 10Inch 427mm Carbon Fiber Frame
1pcs battery strap
1pcs battery mat
